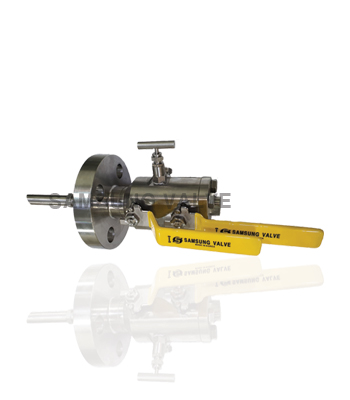

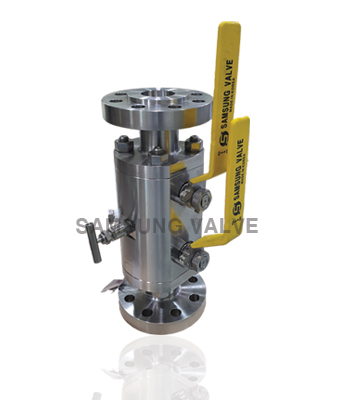

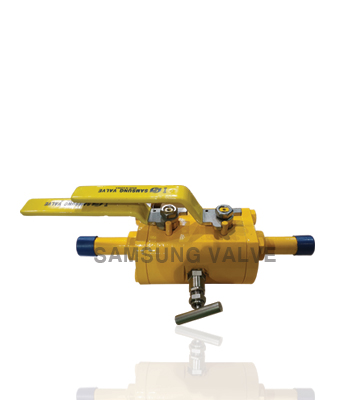

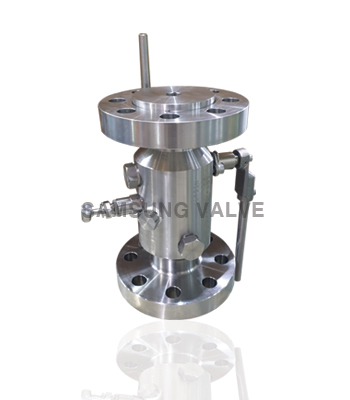

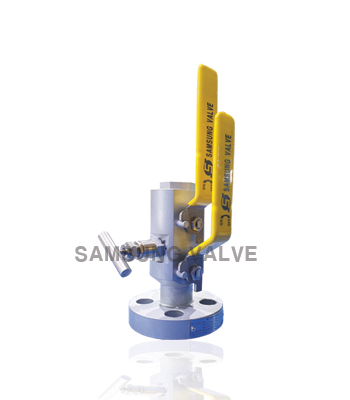

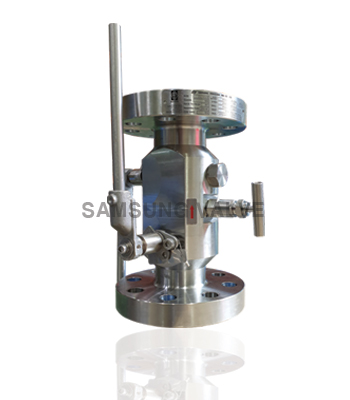

Double Block & Bleed Valve
Double Block & Bleed valve
PRODUCT SPECIFICATIONS
| DESIGN |
|---|
| ASME B16.34 |
API 6D, API 608
|
|
|
|
| STRUCTURE |
|---|
| BOLTED SIDE ENTRY |
| TOP ENTRY |
|
|
|
| RATING |
|---|
| CLASS 150 |
| CLASS 300 |
| CLASS 600 / 900 / 1500 |
|
|
| SIZE |
|---|
| 1/2" ~ 36" |
1/2" ~ 36"
|
1/2" ~ 24"
|
|
|
| APPLICATIONS |
|---|
| Chemical and Petrochemical plants |
| Oil and Gas Production |
| Power Plants |
| Pharmaceuticals |
| Water Treatment |
| END CONNECTION |
|---|
| ASME B16.5 |
| ASME B16.25 |
| ASME B1.20.1 |
| RF / FF / RTJ / NPT |
|
| FACE TO FACE |
|---|
| MANUFACTURE'S STANDARD |
|
|
|
|
| BODY MATERIAL |
|---|
| Carbon Steel |
| Stainless Steel |
| Duplex Stainless Steel |
| Super Duplex Stainless Steel |
| Monel / Alloy 625 / B148-C95800 |
| SEAT MATERIAL |
|---|
| PTFE |
| RTFE (Glass, Graphite, Carbon) |
| RTFM |
| DEVLON / PEEK |
|
| BORE |
|---|
| FULL BORE |
| REDUCER BORE |
|
|
|
| FEATURES |
|---|
| Floating or Trunnion Design |
| 2 Ball 1 Needle Pattern |
| Ensuring Complete Isolation |
| Releasing Residual Pressure and Fluid |
| Simplifying the System |
