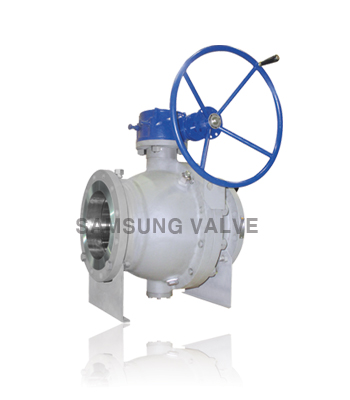

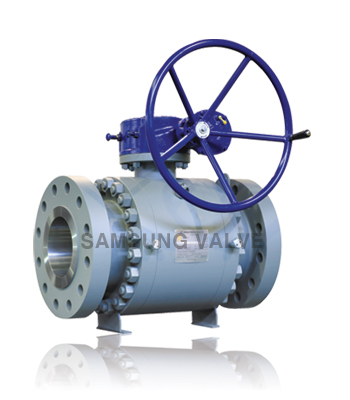

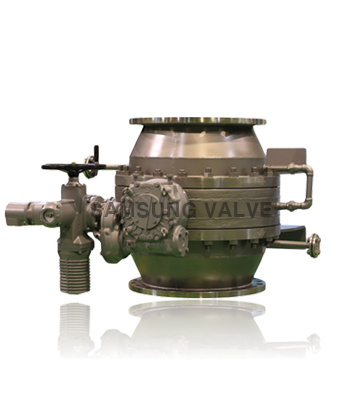

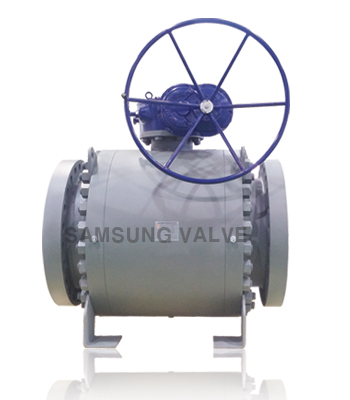

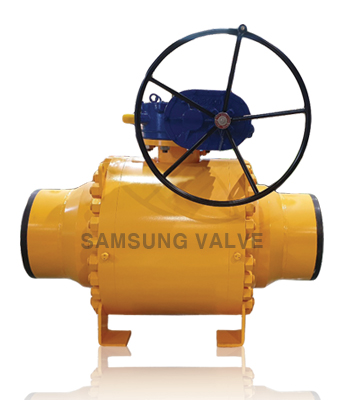

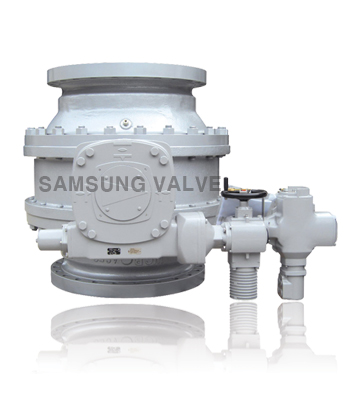

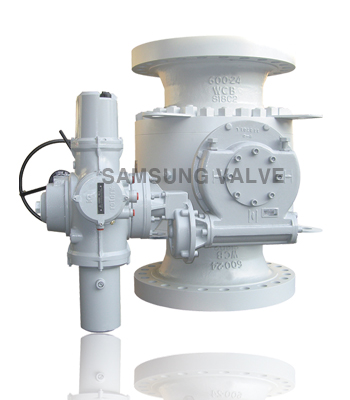

Trunnion type ball valve
PRODUCT SPECIFICATIONS
| DESIGN |
|---|
| ASME B16.34 |
| API6D, API608 |
| BS5351 |
| JIS B2071 |
KS B2308 |
| BONNET |
|---|
| BOLTED SIDE ENTRY |
| TOP ENTRY |
| RATING |
|---|
| CLASS 150 / 10K(0.98Mpa) |
| CLASS 300 / 20K(1.96Mpa) |
CLASS 600 / 40K(3.92Mpa) |
| 30K(2.94Mpa) |
| CLASS 900 / 1500 / 2500 |
| SIZE |
|---|
| 2" ~ 48" / 50A ~ 1200A |
| 2" ~ 48" / 50A ~ 1200A |
| 2" ~ 48" / 50A ~ 1200A |
| 50A ~ 1200A |
| 2" ~ 36" / 2" ~ 24" / 2" ~ 12" |
| TEMPERATURE(℃) |
|---|
| -46℃ to +250℃ |
| END CONNECTION |
|---|
| ASME B16.5 |
| ASMEB16.47 |
| ASME B16.25 |
| DIN EN 1092-1 / JIS B2220 |
| RF / FF / RTJ / BW |
| FACE TO FACE |
|---|
| ASME B16.10 |
| API 6D |
| JIS B2002 |
| KS B2308 |
| LEAKAGE CLASS |
|---|
| MSS SP 61 |
| API598 |
| JIS B2003 |
| MATERIAL |
|---|
| Carbon Steel |
| Stainless Steel |
| Special Alloy Steel |
| SEAT MATERIAL |
|---|
| PTFE / RTFE |
| PEEK / DEVLON |
| BORE |
|---|
| FULL BORE |
| REDUCER BORE |
| FEATURES |
|---|
| FIRE SAFETY & ANTI-STATIC |
| SPECIAL CLEANING SERVICE |
| LOCKING DEVICE |
| TOXIC SERVICE VALVE |

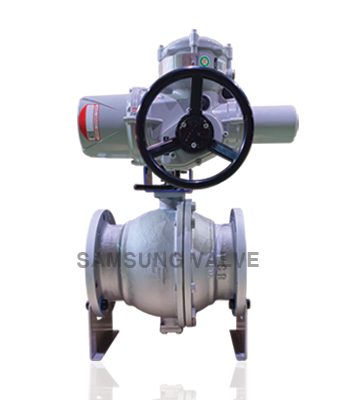

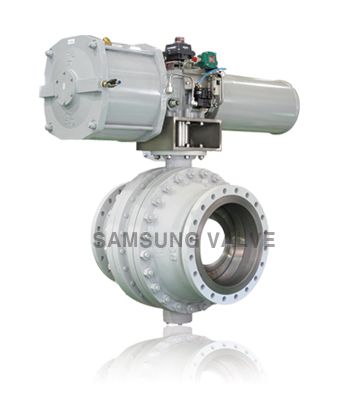

| MOV / POV / VALVE |
