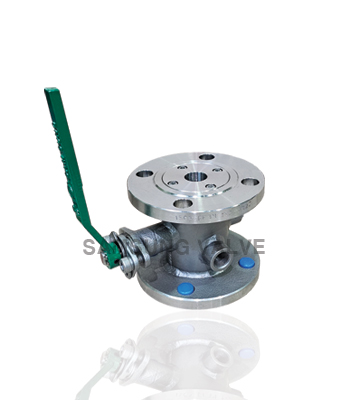

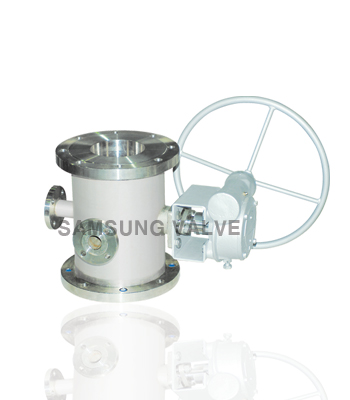

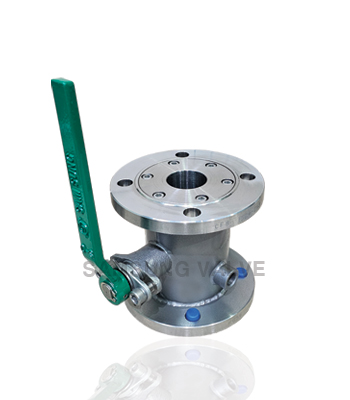

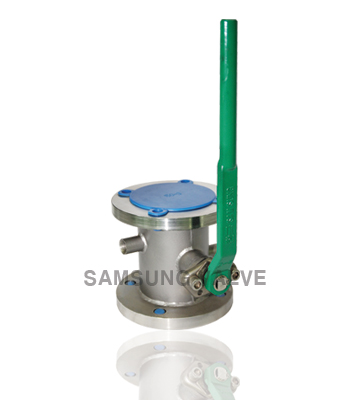

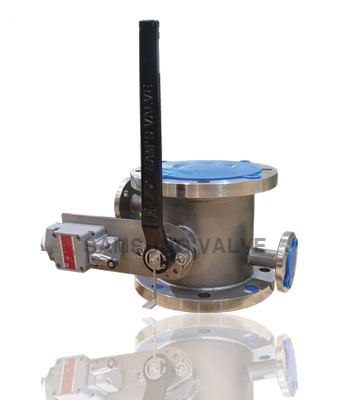

Jacket ball valve
PRODUCT SPECIFICATIONS
| DESIGN |
|---|
| ASME B16.34 |
| JIS B2071 |
| STRUCTURE |
|---|
| SIDE ENTRY |
| RATING |
|---|
| CLASS 150 |
| CLASS 300 |
| JIS 10K |
| JIS 20K |
| SIZE |
|---|
| 1/2" X 1-1/2" ~ 6" X 8" |
| 1/2" X 1-1/2" ~ 3" X 5" |
| 15 X 40 ~ 150 X 200 |
| 15 X 40 ~ 80 X 125 |
| APPLICATIONS |
|---|
| High-Viscosity Fluids: chocolate, wax, |
| polymers, resins |
| Food and Pharmaceutical Industries |
| Chemical Industry |
| END CONNECTION |
|---|
| ASME B16.5 |
| JIS B 2220 |
| RF / FF |
| FACE TO FACE |
|---|
| ASME B16.10 |
| JIS B 2002 |
| TEST |
|---|
| API 598 |
| JIS B 2003 |
| BODY MATERIAL |
|---|
| Carbon Steel |
| Stainless Steel |
| Special Alloy Steel |
| Monel / Alloy 625 / B148-C95800 |
| SEAT MATERIAL |
|---|
| PTFE |
| RTFE (Glass, Graphite, Carbon) |
| RTFM |
| PEEK |
| SPECIAL |
| BORE |
|---|
| FULL BORE |
| REDUCED FLANGE |
| FEATURES |
|---|
| Temperature Control |
| Robust Construction |
| One-piece Body |
| Fire Safety & Anti-Static |
| Locking Device |
