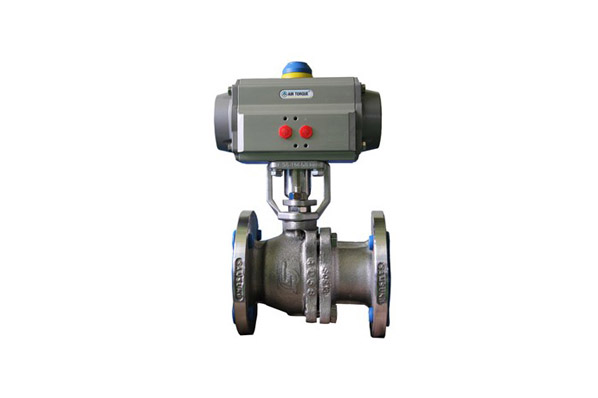

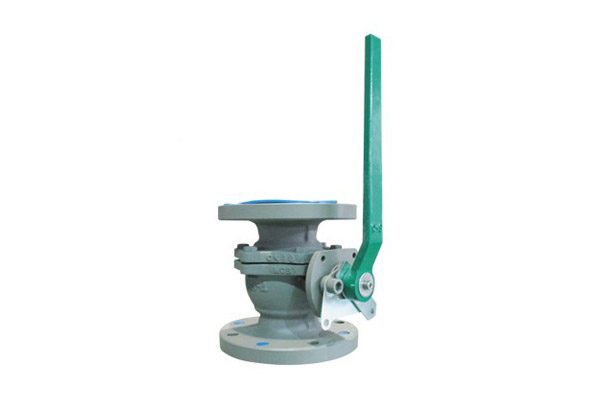

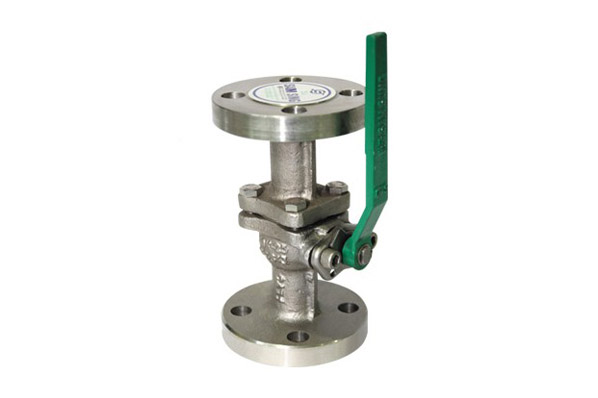

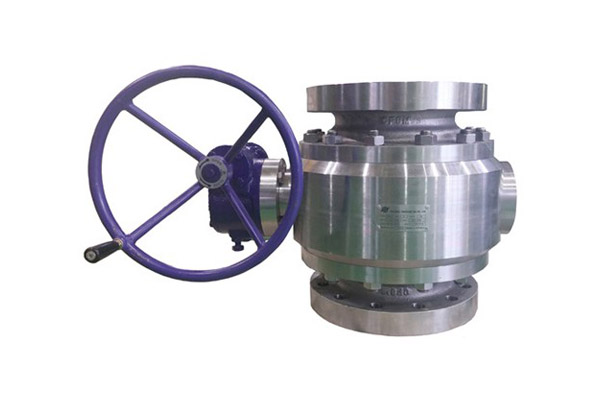

Metal to metal ball valve
Manufacturing Scope
- Size : Full bore DN15 (1/2") ~ DN500 (20")
- Class 150 : DN15 (1/2") ~ DN500 (20")
- Class 300 : DN15 (1/2") ~ DN400 (16")
- Class 600 : DN15 (1/2") ~ DN300 (12")
- Pressure Rating : Class 150 ~ 600, JIS 10K ~ 30K
- Working Temperature : '-40°C ~ +650°C
Standard Features
- Face to face : ASME B16.10 , JIS B2002
- End flange : ASME B16.5 , JIS B2238
- Shell wall thickness : ASME B16.34 & BS5351
- Fire safe design (API 607 , API 6FA & BS6755)
- Anti-static device
- Locking device
- Blow-out proof stem
- Design : ASME B16.34 , API 6D or BS5351
