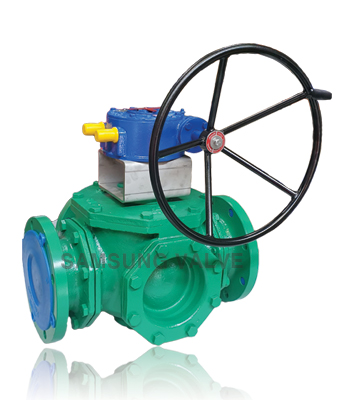

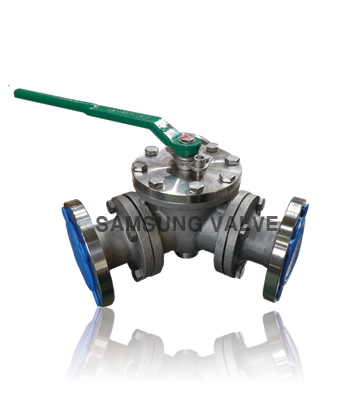

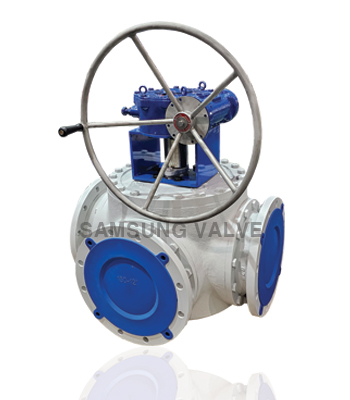

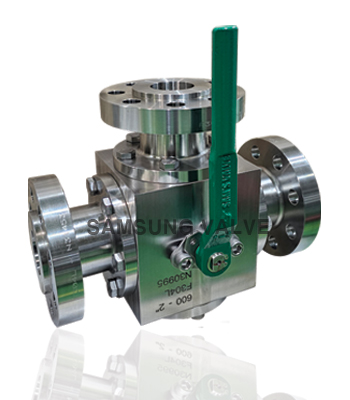

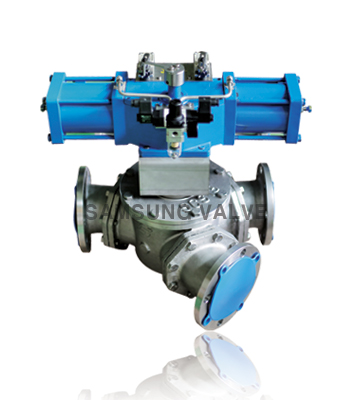

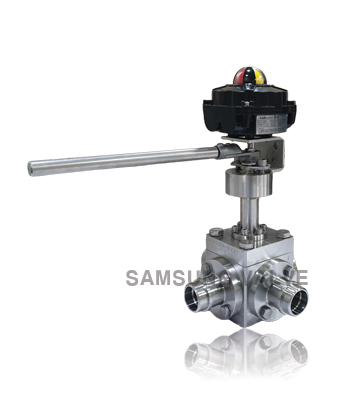

3-Way ball valve

3-Way ball valve

PRODUCT SPECIFICATIONS

DESIGN
ASME B16.34
JIS B2071



BONNET
BOLTED SIDE ENTRY
TOP ENTRY
RATING
CLASS 150 / 10K(0.98Mpa)
CLASS 300 / 20K(1.96Mpa)

SIZE
1/2″ ~ 14″ / 15A ~ 350A
1/2″ ~ 12″ / 15A ~ 300A

TEMPERATURE(℃)
-46℃ to +250℃
END CONNECTION
ASME B16.5
ASME B16.25
DIN EN 1092-1
JIS B2220
RF / FF / RTJ / BW
FACE TO FACE
MANUFACTURE'S STANDARD



LEAKAGE CLASS
MSS SP 61
API598
JIS B2003
MATERIAL
Carbon Steel
Stainless Steel
Special Alloy Steel
SEAT MATERIAL
PTFE / RTFE
PEEK / DEVLON
BORE
FULL BORE

FEATURES
FIRE SAFETY & ANTI-STATIC
SPECIAL CLEANING SERVICE
LOCKING DEVICE
BLOW-OUT PROOF STEM

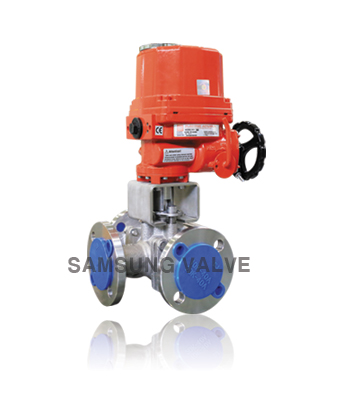

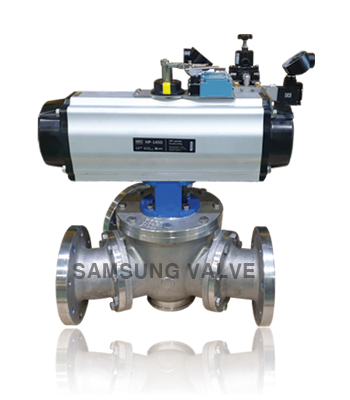

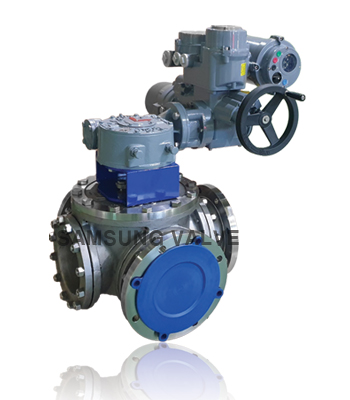

MOV / POV / VALVE
