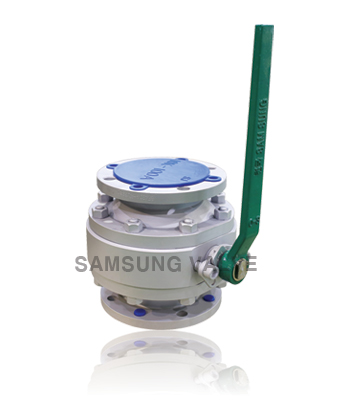

Metal to metal ball valve
Metal to metal ball valve
PRODUCT SPECIFICATIONS
| DESIGN |
|---|
| ASME B16.34 |
| API 6D, API 608 |
| JIS B 2071 |
| KS B 2308 |
|
| STRUCTURE |
|---|
| BOLTED SIDE ENTRY |
| TOP ENTRY |
|
|
|
| RATING |
|---|
| CLASS 150 / 10K(0.98Mpa) |
| CLASS 300 / 20K(1.96Mpa) |
| CLASS 600 / 40K |
| JIS 30K |
| CLASS 900 / 1500 / 2500 |
| SIZE |
|---|
| 1/2" ~ 36" / 15 ~ 900 |
1/2" ~ 36" / 15 ~ 900
|
1/2" ~ 24" / 15 ~ 600
|
| 15 ~ 600 |
| 1/2" ~ 24" / 1/2" ~ 24" / 12" ~ 12" |
| APPLICATIONS |
|---|
| Chemical and Petrochemical plants |
| Oil and Gas Production |
| Power Generation |
| Various Liquids, Steam, Slurries, |
| Solids and many other services |
| END CONNECTION |
|---|
| ASME B16.5 |
| ASME B16.25 |
| ASME B16.47 |
| DIN EN 1092-1 / JIS B 2220 |
| RF / FF / RTJ / BW |
| FACE TO FACE |
|---|
| ASME B16.10 |
| API 6D |
| JIS B 2002 |
| KS B 2308 |
|
| TEST |
|---|
| API 598 |
| JIS B 2003 |
| KS B 2308 |
| ISO 5208 |
| ANSI / FCI 70-2 |
| MATERIAL |
|---|
| Carbon Steel |
| Stainless Steel |
| Duplex Stainless Steel |
| Super Duplex Stainless Steel |
|
| SEAT MATERIAL |
|---|
| Tungsten Carbide Coating |
Chromium Carbide Coating
|
| Stellite #6 |
| ENP |
|
| BORE |
|---|
| FULL BORE |
| REDUCER BORE |
|
|
|
| FEATURES |
|---|
| Superior Durability and Abrasion Resistance |
| Suitable for High Temperature and Pressure |
| Excellent Sealing Performance |
| Long Lifespan and Low Maintenance Costs |

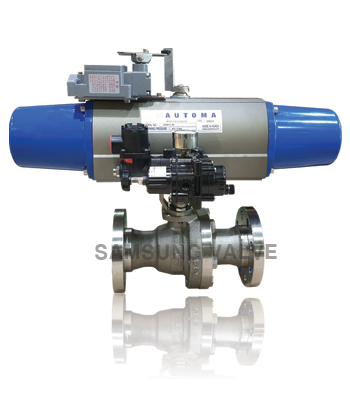

| Lever / Gear / POV / MOV |
